Phrenic nerve injury (PNI) is a well-noted complication after cardiac (1-4) and sometimes also after thymic surgery (5,6). On the contrary, scarcely has attention been paid to inadvertent PNI during lung cancer surgery, with few cases reported (6). Although some diagnostic tools have been proposed for detecting PNI (7-13), they are not readily available in most of the cardio-thoracic surgery units. During surgical resection for lung cancer, unexpected significant diaphragm elevation (SDE) on post-operative chest film is often the first sign suggesting PNI. But this is mainly subjective and without a well-defined criterion for quantitative measurement (2-5). Upon fluoroscopic examination, a paralyzed diaphragm with absent or paradoxical movement is considered diagnostic of the presence of PNI. Video-assisted thoracoscopic surgery (VATS) is now the recommended approach for surgical management of early-stage lung cancers, with well demonstrated advantages over open thoracotomy (14,15). With different techniques and instruments used for these two approaches, new problems not commonly seen in open surgery may emerge, including PNI. The aim of this study is therefore to quantitatively define an SDE suggestive of PNI and then to evaluate its incidence and functional impact on lung cancer patients undergone VATS lobectomy. We present the following article in accordance with the STROBE Guideline (available at http://dx.doi.org/10.21037/tlcr-20-540).
This is a retrospective cohort study using a prospectively kept database. All cases included in this study were operated on by a single team of surgeons (WF). Extent of diaphragm elevation was first evaluated in a cohort of patients with stage III thymic tumors in whom phrenic nerve was intentionally co-resected because of tumor invasion. The results were then used to evaluate diaphragm elevation and potential PNI in another cohort of patients undergoing VATS lobectomy for lung cancers.
All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013). The study design was approved by the Local Ethics Committees. All patients gave a written informed consent for the surgical treatment and were aware that all information could be used anonymously for scientific purpose only.
Phase I: quantitative evaluation of SDE suggestive of PNI
Extent of diaphragm elevation was first measured on chest X-ray before and 6 months after surgery in thymic tumor patients cohort. Both chest films were taken in postero-anterior projection, on full inspiration and with the patient in standing position. The distance between the highest point of the diaphragm and the apex of the chest before (DB = distance before) and after surgery (DA = distance after) was measured and recorded. Extent of diaphragm elevation was calculated by the following formula: [(DB-DA)/DB]×100%. Fluoroscopy test was performed to validate the diaphragm movement on both the operation (OP) and the non-operation (NOP) sides and to calculate diaphragm movement ratio, defined as diaphragm movement on the OP side divided by that on the NOP side. Considering that there would be loss of lung volume after lobectomy, the above result in mean value + standard deviation (SD) was then taken as the criterion indicating an SDE potentially related to PNI in lung cancer patients undergone VATS lobectomy.
Phase II: evaluation of SDE suggestive of PNI after VATS lobectomy
From a prospectively kept database, patients having VATS lobectomy for lung cancers from January 2012 to December 2016 were retrieved for this study. Only patients with no previous thoracic surgery and no pre-treatment for lung cancer were included. Patients in whom phrenic nerve was transected during surgery because of tumor or lymph node invasion and those converted from VATS to open surgery were also excluded. Since only de-identified information was used for the study, written consent was waived by the hospital IRB. VATS lobectomy was fulfilled through a standard three-hole approach. Hilum mobilization was carried out using energy devices including hook electric cautery or harmonic scalpel. Lymph nodes in hilum were always dissected together with the lobe resected. In patients with lesions appearing as ground-glass opacities, mediastinal nodes were systemically sampled. Skeletonised mediastinal nodal dissection was performed only in patients with solid or sub-solid lesions. Extent of diaphragm elevation in every patient was measured according to the methods described in the first phase of the study. To rule out potential influences of pleural effusion, atelectasis, or pneumonia in the early post-operative period (1), comparison of diaphragm levels was carried out using chest X-rays before and 6 months after surgery (Figure 1A,B,C,D). SDE was diagnosed according to the criterion established through Phase I of the study. Fluoroscopy test was again used to verify SDE diagnosed by chest X-ray and to calculate diaphragm movement ratio as mentioned above. Spirometry test was carried out as a part of preoperative workup in all patients, and also at 6 months after surgery in those patients who did not receive any adjuvant therapy when they came to the outpatient clinic for follow-up (16). The results were expressed as absolute and predicted values preoperatively and as the rate of decline postoperatively. Surgical outcomes and spirometry changes were then compared between patients with or without SDE after surgery.
Quantitative data were expressed as mean ± SD. Continuous variables were compared using Student’s t-test or Mann-Whitney U test, and categorical variables were analyzed by χ2 test. A P value <0.05 was considered statistically significant. All statistical analyses were calculated using the SPSS software version 19.0 (SPSS Inc., Chicago, IL, USA).
Diagnostic criterion for SDE suggestive of PNI
Extent of diaphragm elevation was found to be 24.24%±6.2% in 22 invasive thymic tumor patients with phrenic nerve intentionally transacted during thymectomy. Big wedge resection of the lung was also carried out in all of the patients because of tumor invasion. The upper limit (mean value + SD =30%) was adopted as the criterion for characterizing an SDE potentially due to PNI after VATS lobectomy. Fluoroscopy test was carried out in 10 of these patients. Median diaphragm movement was 3.0 mm on the OP side and 33.3 mm on the NOP side (P=0.007, Figure 2A), with a diaphragm movement ratio of 9%.
Incidence of SDE suggestive of PNI after VATS lobectomy
According to the above results, SDE suggestive of inadvertent PNI was found in 56 (7.4%) cases among 753 consecutive VATS lobectomy patients treated during the study period. As stated before, none of these patients had intentional phrenic nerve transection or noticed injury during surgery. The extent of diaphragm elevation was 15.8%±1.3% in the non-SDE group and 35.9%±1.5% in the SDE group, respectively (P=0.003). Fluoroscopy test was performed in 48 VATS lobectomy patients, 34 in the non-SDE group and 14 in the SDE group. In the non-SDE group, median diaphragm movement was 11.0 mm on the OP side and 28.7 mm on the NOP side (Figure 2B), with a diaphragmatic movement ratio of 38%. In the SDE group however, median diaphragm movement was 5.0 mm on the OP side, and 28.8 mm on the NOP side (Figure 2C), with a diaphragm movement ratio of merely 17%. Significant difference in diaphragm movement was seen on the OP side between the SDE and the non-SDE groups (P=0.003, Figure 3A), but not on the NOP side (P=0.982, Figure 3B). Significant difference was also found in diaphragmatic movement ratio between the SDE and the non-SDE groups (P value =0.018, Figure 3C).
Impact of SDE on postoperative course and post-operative pulmonary function change

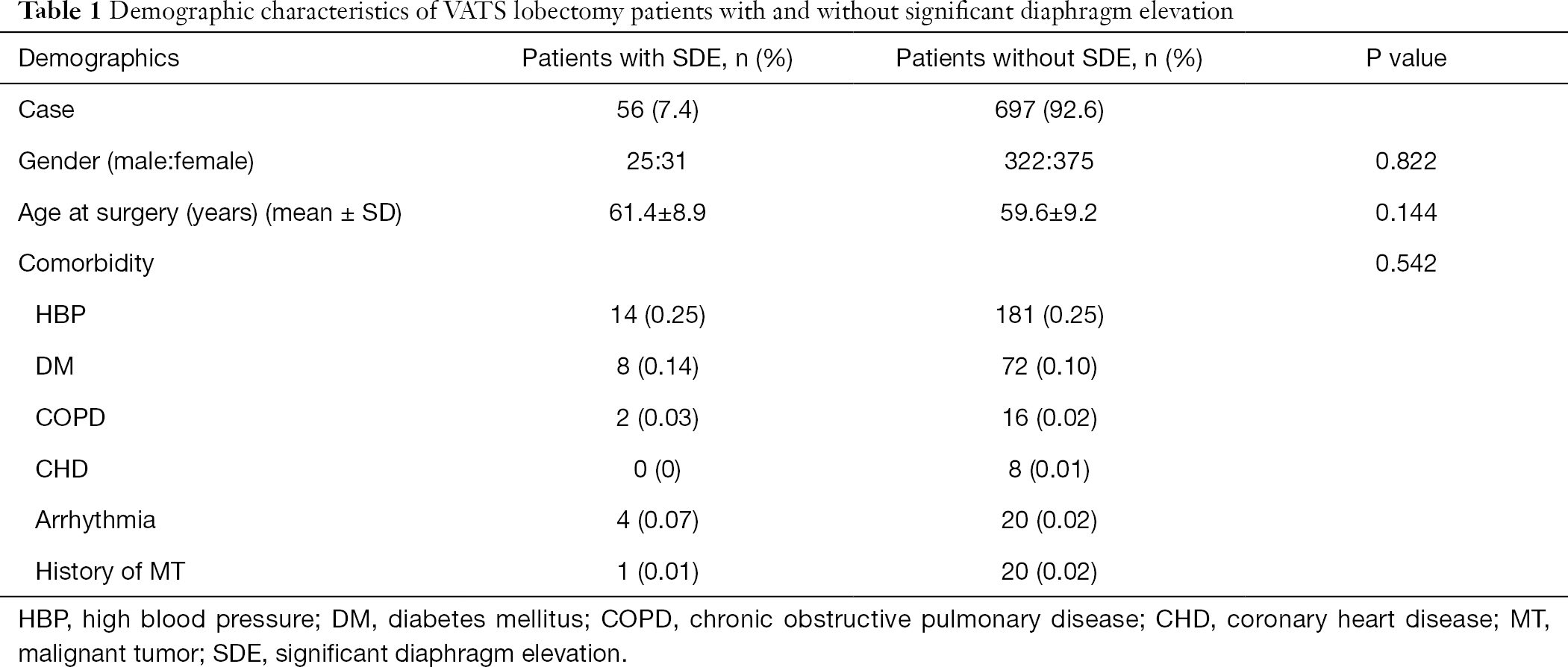

Patient demographics, preoperative co-morbidities, surgical procedures, and tumor characteristics were listed in Tables 1,2. Most of the patients were in good performance status before surgery. No significant difference was detected in gender, age, preoperative co-morbidity, or preoperative spirometry data between patients with or without SDE. No association was detected between SDE and side of OP or extent of lymph node harvesting. Neither was SDE found to be related to either T or N staging of the tumor. However, SDE was seen more often after upper lobectomies (8.9%) than after middle or lower lobectomies (5.5%), with a borderline significance (P=0.073). No patient died after surgery in this series. Incidence of postoperative morbidity was similar between patients with or without SDE (3.5% vs. 7.8%, P=0.240). Similarly, length of hospital stay was not different between the two groups (7.42±4.87 vs. 7.04±4.92 days, P=0.574). Among 202 patients who had repeated spirometry test 6 months after surgery, significantly greater reduction in FEV1, FVC, and DLCO was detected in patients with SDE than those without (Table 3).
Inadvertent PNI during lung cancer resection may be encountered when dissecting superior mediastinal lymph nodes or when mobilizing the hilum, close to where phrenic nerves are located. However, clinical diagnosis of PNI depends most often on subjective judgement. Comparing to preoperative chest X-ray, obvious elevation of a hemi-diaphragm after surgery is often taken as a sign of PNI, with no specific criteria ever defined (1,2). In fact, the individual variety of the patients’ body size, the volume loss after lobectomy (with a compensatory diaphragm elevation to a certain extent) and the chest wall deformity after open thoracotomy is not carefully considered. To confirm the diagnosis of PNI, more specific diagnostic tests have been suggested (1,6-11,17,18), including diaphragm ultrasound (8,9,12), fluoroscopy (1,7,11-13), magnetic stimulation of the phrenic nerves with evaluation of twitch trans-diaphragmatic pressure (10), respiratory function tests (1), and electrodiagnostic studies like phrenic nerve conduction or diaphragm electromyography (8,9,11,13,17). Unfortunately, these tests are not readily available in most of the thoracic surgery services.
In the current study, we first measured on chest X-ray the extent of diaphragm elevation in 22 patients receiving thymectomy for locally advanced thymic tumors. As phrenic nerve was intentionally divided because of tumor invasion in all these patients, hemidiaphragm paralysis was certain and would no doubt have caused SDE. In addition, there was also a lung volume loss to some extent because of concomitant big wedge resection. Considering that compensatory diaphragm elevation would be greater after a lobectomy than after a wedge resection, the 30% upper limit was taken as the criterion to define SDE suggestive of PNI after VATS lobectomy. Significant difference in diaphragmatic movement between the OP and the NOP sides was also verified by fluoroscopy test. Such measurement performed on chest X-ray offered us an objective and readily accessible approach to quantitatively evaluate the extent of diaphragm elevation and to help to diagnose inadvertent PNI in lung cancer surgery. Based on this criterion, we then investigated the incidence of SDE probably related to PNI in VATS lobectomy patients. Measurement of postoperative diaphragm elevation was carried out 6 months after surgery to rule out potential influences of pleural effusion, atelectasis, or pneumonia mostly seen in the early post-operative period (1) and to further improve the accuracy of diagnosing PNI. Fluoroscopy was again used as a validation test and diaphragm paralysis instead of simple elevation was verified (Figures 2,3), further confirming the reliability of this chest X-ray diagnostic criterion.
As PNI after pulmonary resections has only been reported sporadically (6) and has been absent in most of previous studies on surgical outcomes, it is hard to decide whether this is unique to VATS procedures or it has a similar incidence in open surgery. Anyhow, our results indicate that SDE potentially due to inadvertent PNI is an underestimated condition after VATS lobectomy, with an incidence of 7.4% in our patients. As phrenic nerve was not transected in any of these patients, PNI was most likely caused by inadvertent injury when dissecting the anterior pulmonary hilum or upper mediastinal lymph nodes. The incidence was almost doubled after upper lobectomies (8.9%) than after lower lobectomies (5.5%) with a borderline statistical significance (P=0.073). The anatomy of the phrenic nerves may help to explain the difference, as they are close to the pulmonary hilum near the superior pulmonary veins. On the other hand, mediastinal lymph node dissection was not found to be associated with increased risk of SDE suggestive of PNI in this study, confirming what was reported in the ACOSOG Z0030 (19). Reasons for inadvertent PNI during pulmonary resections remain to be elucidated. Although some patient characteristics such as diabetes mellitus (18), chronic obstructive pulmonary diseases (COPD) (20), and increased age (21) have been considered as predisposing factors for PNI after cardiac procedures, no such correlation was found between these conditions and PNI in our patients. In open surgery, the authors use more “cold weapons” such as scissors and clamps, while in VATS pulmonary resections we rely mostly on energy devices such as hook cautery and harmonic scalpel (22). As lateral energy damage could be 7 mm from the currently available energy devices, care should be taken to stay away enough distance (at least 1 cm) from the phrenic nerve to avoid potential thermal injury (23,24).
In contrast to patient with bilateral diaphragm paralysis, unilateral PNI usually remains clinically asymptomatic in most of good risk surgical patients and only occasionally is associated with post-operative respiratory complications (6,7). This may explain why not enough attention has been paid to PNI after lung cancer surgery, especially in the era of minimally invasive surgery, which reduces further the risk of postoperative functional complications. We also failed to find increased postoperative morbidities or prolonged hospital stay between patients with or without SDE, as most of our patients were good risk surgical candidates without severe comorbidity or seriously compromised cardiopulmonary function. However, we did notice that patients with SDE tended to complain dyspnea on exertion such as stair climbing or brisk walking, although we were not able to record detailed results due to the retrospective nature of this study. Moreover, a paralyzed diaphragm is bound to adversely affect the synchronicity and efficiency of its mechanical movement and thus to impair the respiratory function of the patient (25). By comparing spirometry data before and 6 months after surgery, we found a significantly greater reduction in postoperative FEV1, FVC, and DLCO in patients with SDE than those without. Our results are consistent with pulmonary function abnormalities in unilateral diaphragm paralysis described previously (25-33). And the extent of pulmonary function loss was much more significant comparing to our previous study results on spirometry changes in patients without major complications after VATS lobectomy (22). This further confirms that such SDE was due to inadvertent PNI rather than a mere compensatory change of lung volume loss after lobectomy.
Our study has certain limitations that need to be mentioned. As an uncontrolled retrospective study, it is bound to be affected by intrinsic selection biases. And although it would be ideal to make comparison between VATS and open surgery to see whether PNI was indeed caused by energy devices as we speculated, this is unfortunately not amenable as the vast majority of lung cancer surgery has been carried out under VATS at our hospital in the past decade. Also because of its retrospective nature, we were unable to check pulmonary function changes in every patient diagnosed of having SDE. In addition, we only studied diaphragm elevation on chest X-ray and spirometry changes 6 months after surgery. It is likely that some additional patients might also have temporary PNI but recovered within the 6 months period. Although this may have caused an underestimation of the true incidence of PNI, it would have a little clinical impact, as we did not find increased morbidity or respiratory problems in the early postoperative period. Moreover, once the diaphragm function is recovered, it would no longer have a significant negative impact on patients’ quality of life. Certainly, it would be interesting to continue following up those patients with SDE suggestive of PNI to see whether there would be a chance to recover later. Further studies are needed to evaluate the exact impact of PNI on patients’ quality of life and oncologic outcomes.
In conclusion, our results suggest that inadvertent PNI during VATS lobectomy is an underestimated phenomenon and is associated with significantly greater loss of pulmonary function. Patients with more than 30% diaphragm elevation on chest films after VATS lobectomy are highly likely to have PNI and should undergo fluoroscopic validation. Enough attention should be paid to avoid inadvertent PNI so that lung cancer patients may benefit from minimally invasive surgery to a greater extent.
