Conventional and semi-automatic histopathological analysis of tumor cell content for multigene sequencing of lung adenocarcinoma

Daniel Kazdal1,2, Eugen Rempel1, Cristiano Oliveira1, Michael Allgäuer1, Alexander Harms1, Kerstin Singer3, Elke Kohlwes4, Steffen Ormanns5, Ludger Fink6, Jörg Kriegsmann7, Michael Leichsenring8, Katharina Kriegsmann9, Fabian Stögbauer10, Luca Tavernar1, Jonas Leichsenring1, Anna-Lena Volckmar1, Rémi Longuespée11, Hauke Winter2,12, Martin Eichhorn2,12, Claus Peter Heußel12,13, Felix Herth2,14, Petros Christopoulos2,15, Martin Reck2,16, Thomas Muley2,17, Wilko Weichert10, Jan Budczies1, Michael Thomas2,15, Solange Peters18, Arne Warth1,6, Peter Schirmacher1,19,20, Albrecht Stenzinger1,2, Mark Kriegsmann1,2

1Institute of Pathology, University Hospital Heidelberg, Heidelberg, Germany; 2Translational Lung Research Center (TLRC) Heidelberg, German Center for Lung Research (DZL), Heidelberg, Germany; 3Institute of Pathology, University Hospital Tübingen, Tübingen, Germany; 4Institute of Pathology, Johannes Gutenberg University Mainz, Mainz, Germany; 5Institute of Pathology, Ludwig-Maximilians University of Munich, Munich, Germany; 6Institute of Pathology, Cytopathology, and Molecular Pathology, UEGP MVZ, Giessen/Wetzlar/Limburg, Germany; 7MVZ for Histology, Cytology and Molecular Diagnostics, Trier, Germany; 8Joint Practice for Pathology Gütersloh, Gütersloh, Germany; 9Department of Hematology, Oncology and Rheumatology, University Hospital Heidelberg, Heidelberg, Germany; 10Institute of Pathology, Technical University of Munich, Munich, Germany; 11Department of Clinical Pharmacology and Pharmacoepidemiology, University Hospital Heidelberg, Heidelberg, Germany; 12Department of Thoracic Surgery, Thoraxklinik at University Hospital Heidelberg, Heidelberg, Germany; 13Diagnostic and Interventional Radiology With Nuclear Medicine, Thoraxklinik at Heidelberg University Hospital, Heidelberg, Germany; 14Department of Pulmonology, Thoraxklinik at Heidelberg University Hospital, Heidelberg, Germany; 15Department of Thoracic Oncology, Thoraxklinik at Heidelberg University Hospital, Heidelberg, Germany; 16Department of Thoracic Oncology, Lung Clinic Grosshansdorf, Airway Research Center North (ARCN), German Center for Lung Research (DZL), Grosshansdorf, Germany; 17Translational Research Unit, Thoraxklinik at Heidelberg University Hospital, Heidelberg, Germany; 18Department of Oncology, Centre Hospitalier Universitaire Vaudois (CHUV) and Lausanne University, Lausanne, Switzerland; 19Center for Personalized Medicine Heidelberg (ZPM), Heidelberg, Germany; 20National Network Genomic Medicine Heidelberg (nNGM), Heidelberg, Germany

Contributions: (I) Conception and design: D Kazdal, A Stenzinger, M Kriegsmann; (II) Provision of study materials or patients: H Winter, M Kriegsmann, CP Heußel, F Herth, T Muley, P Christopoulos, M Thomas, A Warth; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: D Kazdal, E Rempel, C Oliveira, A Stenzinger, M Kriegsmann; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Prof. Albrecht Stenzinger, MD; Mark Kriegsmann, MD. Institute of Pathology, University Hospital Heidelberg, Im Neuenheimer Feld 224, D-69120 Heidelberg, Germany. Email:;

Background: Targeted genetic profiling of tissue samples is paramount to detect druggable genetic aberrations in patients with non-squamous non-small cell lung cancer (NSCLC). Accurate upfront estimation of tumor cell content (TCC) is a crucial pre-analytical step for reliable testing and to avoid false-negative results. As of now, TCC is usually estimated on hematoxylin-eosin (H&E) stained tissue sections by a pathologist, a methodology that may be prone to substantial intra- and interobserver variability. Here we the investigate suitability of digital pathology for TCC estimation in a clinical setting by evaluating the concordance between semi-automatic and conventional TCC quantification.

Methods: TCC was analyzed in 120 H&E and thyroid transcription factor 1 (TTF-1) stained high-resolution images by 19 participants with different levels of pathological expertise as well as by applying two semi-automatic digital pathology image analysis tools (HALO and QuPath).

Results: Agreement of TCC estimations [intra-class correlation coefficients (ICC)] between the two software tools (H&E: 0.87; TTF-1: 0.93) was higher compared to that between conventional observers (0.48; 0.47). Digital TCC estimations were in good agreement with the average of human TCC estimations (0.78; 0.96). Conventional TCC estimators tended to overestimate TCC, especially in H&E stainings, in tumors with solid patterns and in tumors with an actual TCC close to 50%.

Conclusions: Our results determine factors that influence TCC estimation. Computer-assisted analysis can improve the accuracy of TCC estimates prior to molecular diagnostic workflows. In addition, we provide a free web application to support self-training and quality improvement initiatives at other institutions.

Keywords: Digital pathology; lung adenocarcinoma (lung ADC); tumor cell content (TCC); molecular pathology; next-generation sequencing (NGS)

Submitted Nov 03, 2020. Accepted for publication Jan 24, 2021.

doi: 10.21037/tlcr-20-1168


Focused multigene testing for druggable genetic aberrations is paramount for personalized therapy of various tumor entities (1), including non-squamous non-small cell lung cancer (NSCLC), particularly, adenocarcinomas (ADC) (2).

Several sequencing technologies have been successfully adapted to analyze formalin-fixed and paraffin-embedded (FFPE) tissue samples and to allow highly sensitive and specific detection of genetic alterations in routine diagnostics. A crucial pre-analytic step is accurate determination of the tumor cell content (TCC) since TCC correlates with variant allele frequencies (VAF) of detected somatic mutations and is therefore important for the interpretation of results. For example, overestimation of TCC can impair valid testing, as VAF of specific mutations may fall below the limit of detection causing false-negative results. Furthermore, an accurate TCC aids inference about the presence of different tumor subclones, supports classification of mutations as somatic vs. germline, and is important for the assessment of sequencing quality metrics (3). Accuracy of TCC quantification becomes even more important when large sequencing panels are employed (4-6). Here, the focus does not only lie on a specific set of targetable driver mutations (hotspots) but also on a comprehensive analysis of a plethora of mutations including subclonal co-mutations with lower VAF. Therefore, reliable mutation calling pipelines are crucial for these approaches but they depend on valid and reliable upfront TCC quantification.

In most diagnostic settings, a pathologist will evaluate the TCC by microscopic inspection of a hematoxylin-eosin (H&E) stained tissue section. However, this approach was shown to suffer from limited interobserver reliability (7-9). Data from previous studies suggest that whereas mean estimates from multiple observers are correct (9) variability among observers is high with a significant proportion overestimating TCC which may lead to false-negative sequencing results (8,10).

Recently, it was demonstrated that digital pathology coupled with image analysis may help to increase accuracy, reproducibility and standardization when evaluating tissue sections (11,12). Commercial as well as open source digital analysis solutions are available, that are able to discern between tumor and stromal cells (13-16).

In the current study we compared conventional (conv) and computer-aided quantification (dPat: digital pathology) of TCC in a large sample set of 120 pulmonary ADC sections. We investigated the influence of several potential confounding variables such as (I) H&E versus immunohistochemical thyroid transcription factor 1 (TTF-1) staining, (II) professional experience of raters, (III) different ADC growth patterns and developed a web-based self-training and quality-improvement tool.

We present the following article in accordance with the MDAR reporting checklist (available at


Study design

For a comprehensive evaluation of computer-aided digital TCC quantification in comparison to microscopy-based visual assessment (Figure 1), we compiled a cohort of H&E and TTF-1 stained ADC sections of surgically resected cases. Following digitalization of the sections (20×, Hamamatsu C9600-02 NanoZoomer Digital Pathology, Hamamatsu Photonics K.K., Hamamatsu City, Japan and Aperio CS2, Leica Biosystems, Wetzlar, Germany), 50 images with an area of 1.5 to 2.0 mm2 were chosen independently for H&E staining and immunohistochemistry (IHC), representing 10 cases of each of the five diagnostically relevant histological growth patterns (lepidic, acinar, papillary, solid, micropapillary) (17). In addition, 20 of these images (10 of each staining and 2 of each growth pattern) were duplicated and rotated by 180°, in order to evaluate the intraobserver reliability of the examination. In total 120 images were prepared.

Figure 1 Study design: TCC of 120 images with an area of 1.5 to 2.0 mm2 of pulmonary adenocarcinoma were determined using the two digital pathology software applications HALO (Indica Labs) and the open source software QuPath as well as by 19 conventional estimators, comprising 7 BP, 7 PT and 5 NP. Fifty images were chosen separately for H&E and TTF-1 IHC, representing each 10 cases of the five histological growth patterns (lepidic, acinar, papillary, solid, micropapillary). In addition, 20 of these images (10 of each staining and 2 of each growth pattern) were duplicated and rotated by 180° in order to evaluate the intraobserver reliability. TCC, tumor cell content; BP, board-certified pathologist; PT, pathologist in training; NP, non-pathologist; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1; IHC, immunohistochemistry.

The TCC in each image was determined using two different software applications for digital pathology, the commercially available HALO image analysis platform (18) (Indica Labs, Albuquerque, NM, USA) and the open source software QuPath (13). For the purpose of comparison, the TCC was also estimated by a group of board-certified pathologists (BP, n=7), pathologists in training (PT, n=7) and non-pathologists (NP, n=5) from eight different German pathology institutes.

The images were made available to study participants using a proprietary online tool (; The order of the images was once randomized and then kept for all estimators, first showing all the H&E and then the TTF-1 IHC stained images.

Sample material

All samples included in this study were derived from ADC resected at the Thoraxklinik at Heidelberg University. The tumors were diagnosed at the Institute of Pathology at Heidelberg University according to the criteria of the current WHO Classification [2015] for lung cancer (19). The preparation of FFPE samples as well as immuno-/histochemical stainings were supported by the tissue bank of the National Center for Tumor Diseases (NCT; project: #1746, #2015).

H&E staining

H&E stainings were prepared using the Leica Autostainer XL (Leica Biosystems, Nussloch, Germany), Shandon GillTM 3 hematoxylin (Thermo Fisher Scientific, Waltham, MA, USA) and an eosin solution consisting of 7.5 g Eosin G (Merck, Darmstadt, Germany) dissolved in 1,000 mL EtOH (70%) + 5 mL acetic acid (99%). The following successional 1 min incubation steps were performed for the staining reaction: 2× xylene, ethanol 100%, 2× ethanol 96%, ethanol 70%, dH2O, Shandon GillTM 3 hematoxylin, 2× dH2O, ethanol 70%, eosin, ethanol 70%, 2× ethanol 96%, 2× ethanol 100%, 3× xylene.


IHC for TTF-1 was carried out applying a 1:100 dilution of a mouse monoclonal antibody against TTF-1, clone SPT24 (Leica Biosystems, Newcastle Upon Tyne, UK) to the sections using a BenchMark ULTRA autostainer (Ventana Medical Systems, Tucson, AZ, USA) according to the manufacturer’s instructions.

Tumor annotation, training of tumor and stroma classifier and recording of results

For the semi-automatic digital estimation of the TCC, the digitalized images were analyzed with the two digital pathology software solutions QuPath (13) (v.0.1.2) and HALO (v.2.0.1038, Indica Labs, Albuquerque, NM, USA). Following cell detection using standard parameters, representative areas of tumor and non-neoplastic cells were annotated by a pathologist (MK) for both programms and a tumor-non-neoplastic classifier was trained for each image separately using the default training settings implemented in QuPath and HALO. After training, the whole image was classified and the results were reviewed by a pathologist. If a significant estimated proportion (≥5%) of cells were apparently misclassified during the quality review (either tumor cells as non-neoplastic cells or vice versa), the classifier training was repeated until a correct result was reached. Finally for each section, the absolute number of tumor and non-neoplastic cells were recorded and the TCC as the percentage of tumor cells to total cell number was calculated.

Statistical analysis and plot generation

All statistical analyses were carried out using the R software (v.3.5.0; R Core Team, 2016). The following functions of the “stats” package (v.3.3.0) were used for the stated statistical test: “fisher.test” to perform Fisher’s exact test; “shapiro.test” to perform the Shapiro-Wilk test of normality; “wilcox.test” to perform the Mann-Whitney U test; “cor.test” to test for correlation using Pearson’s product moment correlation coefficient.

Intra-class correlation coefficients (ICC) according to Shrout & Fleiss (20) were calculated using the “icc” function of the “irr” package (v.0.84.1). For comparison of the agreement of the estimators within a group ICC type 2,1 (two-way random, single measures) and for the agreement between the average estimations of different estimator groups ICC type 2,k (two-way random, average measures). Further, the used “icc” function differentiates between two approaches considering the absolute agreement, which was used in this study if not stated otherwise, and a consistency type. With the latter systematic errors of raters are neglected and only the random residual error is kept.

The agreements were considered with respect to the ICC values poor (<0.5), moderate (0.5–0.75), good (0.75–0.9) or excellent (>0.9) as stated before (21). Plots were generated either using the “ggplot2” (v2.1.0) and the “GGally” (v.1.2.0) packages or by using Microsoft Excel 2013 (Microsoft, Redmond, WA, USA) together with the “Daniel’s XL Toolbox NG” (7.1.4) add-in (

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Tissues were used in accordance with the ethical regulations of the NCT tissue bank and approved by the ethics committee of Heidelberg University (S-145/2017).


Tumor cell quantification & inter-rater reliability

The estimated TCC of all H&E and TTF-1 stained images assessed with the two digital pathology applications (Q, H) and by conventional manual evaluation (1–19: participants) are visualized as heat map in Figure 2. The mean absolute deviation (MAD), as an indicator of variability, was significantly smaller (both P<0.01) between the two software solutions for both stainings compared to inter-rater variability of the conventional estimators, with average MAD values of 3.4 and 2.6 compared to 12.4 and 11.2, respectively. Further, differences between the average digital (ØdPat) and conventional (Øconv) TCC estimates for each case were significantly (P<0.01) smaller when using TTF-1 IHC sections.

Figure 2 Overview of TCC estimates. The heat map shows the estimated TCC of all H&E and TTF-1 stained display images assessed with the two digital pathology applications (Q: QuPath, H: HALO) and by conventional manual evaluation (participants: 1–19), as well as the average of digital (ØdPat) and conventional (Øconv) estimates of each image. MADs were calculated for digital and conventional estimations separately, and the absolute difference (Diff.) between the average values ØdPat and Øconv. GP: histological growth pattern shown in the respective image. TCC, tumor cell content; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1; IHC, immunohistochemistry; MAD, mean absolute deviation.

In order to evaluate the inter-rater reliability of the TCC estimations, we calculated ICC (ICC using the more stringent “agreement type”, considering absolute differences and therefore also systematic errors) for different groups and both stainings separately. First, considering the reliability within the estimator groups (digital pathology and conventional estimators, comprising BP, PT and NP; Figure 3A) only a poor correlation with values of 0.48 (H&E) and 0.47 (TTF-1), respectively, was observed for the conventional evaluation. In contrast, the concordance between the two digital approaches was high for both stainings, with a good (0.87) and excellent correlation (0.93) pointing towards an improvement in performance using TTF-1 IHC. Further, subgrouping of the conventional estimations according to the level of pathological experience did not reveal a significant difference between the three groups with similar ICC values and highly overlapping confidence intervals.

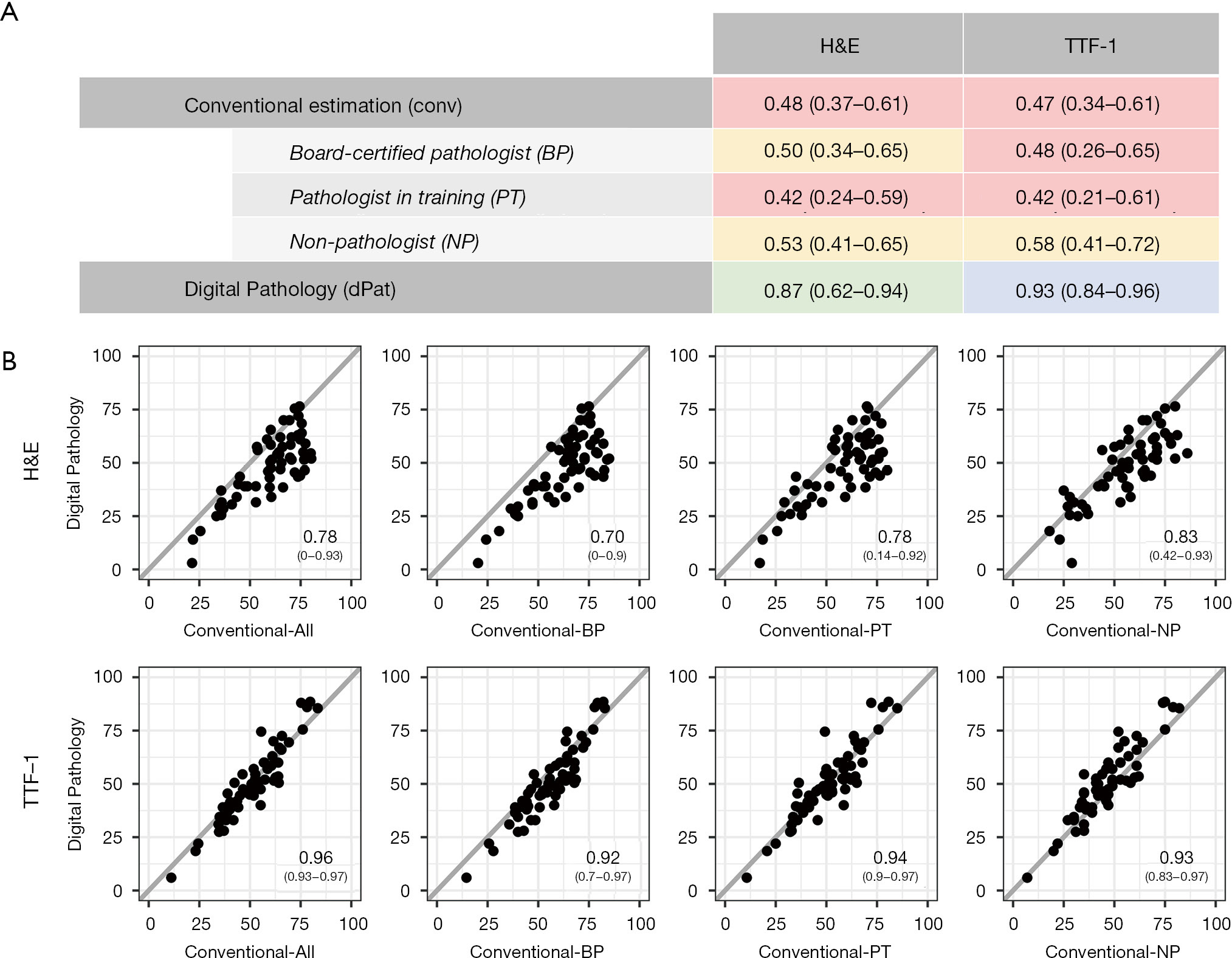

Figure 3 Inter-rater reliability of the TCC estimations. (A) ICC for the agreement within different estimator groups for H&E and TTF-1 stainings. (B) Scatter plots and ICC for the comparison of average digital and average conventional estimations considering all conventional estimators or subsets of BP, PT or NP for both stainings. ICC, intra-class correlation coefficients; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1; BP, board-certified pathologist; PT, pathologist in training; NP, non-pathologist.

Next, we determined the agreement between the digital and conventional evaluations by calculating ICCs considering the average TCC estimation of each image for the respective approach (Figure 3B). Overall, for H&E stainings a good agreement (0.78) and for TTF-1 IHC an excellent agreement (0.96) was achieved. Looking at the CI intervals and also considering the higher MAD values, we noted that H&E based estimates had a much higher variability in levels of agreement ranging from very poor to excellent (CI: 0–0.93), compared to the TTF-1 based estimation (CI: 0.93–0.97) when data of individual images were considered. The scatter plots show (Figure 3B), that the conventional estimations of TCC based on H&E stainings were consistently higher than the corresponding digital evaluations, as already implied in Figure 2. Additionally, we observed a significant correlation (r=0.81, P<0.01) between the two approaches. Both findings taken together indicated a systematic error (i.e., overestimation of TCC) for conventional H&E based determination of TCC. Indeed, calculation of the ICC using the “consistency type”, which neglects systematic errors (Table S1), yielded an ICC value of 0.89 with a confidence interval ranging from 0.82 to 0.94. Of note, this systematic error was not seen for TCC estimations based on TTF-1 staining.

A corresponding analysis for subgroups with regard to the diagnostic histopathological experience of the estimators yielded comparable ICC values for all subgroups and indicated similar systematic overestimations for H&E stainings. ICC “consistency” values disregarding a systematic error had only minimal variation between the subgroups: BP 0.88 (0.80–0.93), PT 0.87 (0.78–0.92) and NP 0.89 (0.81–0.93).

Influencing factors: histological growth patterns

Next, we sought to identify major factors that may have an impact on the TCC evaluation and could therefore be accountable for higher discrepancies. First, we considered the TCC estimations with regard to the histological growth pattern (Figure S1) and calculated the ICC separately for respective sample subsets (Figure 4A). The resulting agreements were poor/moderate between the conventional estimations and good/excellent between the two digital approaches, comparable to the results for the complete sample set. The ICC values based on the average of the conventional and digital estimations were similar as compared to the total cohort, except for the considerably lower ICC (0.65) regarding H&E stained sections of predominantly solid ADC. A pairwise comparison showed that the TCC was estimated significantly (P<0.01) higher with the conventional approach compared to the digitally supported work-up (Figure 4B). A representative case, HE-S5, exemplifies this finding: the Øconv TCC content of section HE-S5 was estimated to be 70% while the actual TCC was 53% as assessed by dPat (Figure 4C).

Figure 4 Factors influencing TCC estimation—histological growth pattern (A,B,C) and the genuine TCC (D). (A) ICC calculated separately for subsets regarding the predominant histological growth pattern of the tumor section. (B) TCC estimations of the predominant solid tumor sections, x = conv TCC estimates; red line ØdPat. (C) Representative image of error prone section = HE-S5 and corresponding QPath evaluation. (D) Ratio of over- and underestimation (±10%) with regard to the ØdPat TCC of a sample, blue: underestimation, grey: within 10% difference, red: overestimation. TCC, tumor cell content; ICC, intra-class correlation coefficients; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1.

Of note, while the confidence intervals of acinar, solid, papillary and micropapillary subsets were in a comparable range as seen for the complete data set, H&E sections of predominant lepidic tumors showed a smaller range of confidence intervals (0.50–0.96).

Influencing factors: TCC

Secondly, we investigated if the TCC estimations were influenced by the actual TCC (determined as ØdPat) of a sample. To this end, we analyzed how many over- or underestimations, defined as a respective difference of 10% to the ØdPat TCC, were carried out following the conventional approach for tumors with a ØdPat TCC of <30%, <40%, 40–60%, >60% and >70% (Figure 4D). Regarding H&E stainings, a general trend for overestimations (39–67%), was observed for tumors with a ØdPat TCC <70%. However, we also noted that the frequency of underestimations increased the higher the ØdPat TCC of a sample was. The proportion of overestimation was significantly (P<0.01) reduced when TCC estimations were based on TTF-1 IHC, both for the entire cohort as well as in matched comparisons for the different TCC subgroups. For both stainings, tumors with a ØdPat TCC between 40% and 60% had the lowest ratio of estimations (H&E: 24%, TTF-1: 45%) within the 10% difference. Of note, almost no underestimations were seen for H&E stainings with a TCC below 30% and almost no overestimations for TTF-1 IHC with a TCC higher than 70%.

Intraobserver reliability of TCC estimations

Lastly, we evaluated the consistency of the TCC estimations. To this end, we selected 20 images (two images per growth pattern for both stainings) out of the already evaluated 100 images and rotated them by 180° (Figure 5). The difference of the TCC estimation of the original to the flipped image was calculated to determine the consistency. For the conventional approach the average difference between both estimations was 10.1% for H&E stainings, 7.6% for TTF-1 stainings and 8.5% combined. The digital evaluation yielded significantly lower differences (P<0.01 for all three paired tests) with an overall difference of 1.35%, as well as 2.2% and 0.5% for H&E and TTF-1 staining, respectively. Also, the average differences of estimations based on TTF-1 staining were significantly smaller (conv: P=0.02, dPat: P<0.01) compared to H&E derived estimations for both approaches. Considering the different subgroups of conventional evaluators, the highest consistency was seen for the BP, with no difference between both estimations in 35% of the cases. Only the digital assessments yielded a higher proportion of identical TCC estimations (QuPath: 40% and HALO: 55%).

Figure 5 Consistency of TCC estimations. (A) Average difference in the re-estimation of the 180° flipped H&E or TTF-1 stainings for the conventional and the digital TCC estimations. (B) Percentage of re-estimations with a respective difference of 0%, ≤5%, ≤10% and >10% assessed by BP, PT, NP as well as by using the QuPath and HALO software. TCC, tumor cell content; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1; BP, board-certified pathologist; PT, pathologist in training; NP, non-pathologist.


In the present study, we investigated the variability of manual conventional and semi-automatic digital quantification of the TCC in ADC and determined aspects improving or impairing reliable estimations. We found that (I) the agreement of TCC estimation between the two digital software solutions was higher compared to the agreement within the group of 19 participants, (II) that the agreement of the average digital TCC estimation to the average human TCC estimations was good, (III) that the agreement was improved using TTF-1 immunohistochemical staining, (IV) and that the agreement was significantly reduced for the conventional estimation of H&E sections of tumors with a solid growth pattern. Within the different subgroups of conventional estimators, the average agreement was comparable regardless of the level of experience. Moreover, it became clear that estimators tend to overestimate the TCC in tumors especially for H&E stainings and that the highest rate of misclassification was seen for tumors with about 50% TCC. Finally, we could show that the consistency of estimations was higher for the semi-automatic digital evaluation with only 1% difference in average compared to 9% for the conventional analysis approach. The web application that was developed and used for this study including the complete image set is freely available for self-testing to interested parties ( and also features an additional training mode (

Dufraing et al. have already anticipated the potential of computer-assisted TCC estimations when they hypothesized that digital tools, thoroughly validated and trained to recognize neoplastic cells, might be a solution to reduce interobserver variation. It was shown previously that mean estimates from multiple observers are fairly accurate (22). This is in keeping with our results showing a good agreement of computer-aided TCC estimations with the average of human TCC estimations. Therefore, we conclude that digital software solutions are a suitable support system that can reduce interobserver variability (Figure 6).

Figure 6 Overview of factors improving or impairing the TCC estimation. TCC, tumor cell content; H&E, hematoxylin-eosin; TTF-1, thyroid transcription factor 1.

All samples included in our study were TTF-1 positive ADC. As such TTF-1 IHC could be used to highlight the tumor cell nuclei and was expected to simplify TCC estimations and lower interobserver variation. We could demonstrate an improvement of the agreement between the two software tools as well as for the agreement of the averages of computer-aided and conventional evaluations, but unexpectedly the agreement within the human observers remained poor. This finding indicates that basic recognition of tumor cells might not be a major confounding aspect for the conventional TCC quantification. Similar conclusions can be drawn considering the different diagnostic histopathological experience of our participants, as the performance of trained NP was non-inferior to the performance of pathologists. A large survey including 105 laboratories across Europe revealed that in the majority of laboratories TCC is estimated by pathologists (approx. 90%), but in a subset also by molecular biologists or technicians followed by confirmation by a pathologist (22). In this study, no significant difference was observed between these groups. Our study supports that finding although we strongly advise confirmation by an experienced pathologist. Even a slightly better agreement was observed for NP compared with the computer-aided evaluation regarding H&E stainings, which might be explained by the time spend for the analysis which was not measured here.

Other large interobserver studies also showed that TCC estimations are highly variable among pathologists (7-9,22). For example, a large multi-institutional study including 194 participating laboratories revealed that although the concordance of 8 out of 10 images was within 10% of the criterion standard, images with the highest deviation exhibited TCC counts ranging from 10% to 95% (9). Our results are well in line with the literature, as the agreement between observers was poor [ICC: 0.48 (HE) and 0.47 (TTF-1)].

To the best of our knowledge, our study is the first to consider the growth pattern of ADC in the evaluation of TCC. While the agreement within and between the conventional and digital evaluation was similar to the complete data set for predominant lepidic, acinar, papillary or micropapillary growth patterns, only a moderate agreement was seen for H&E stained ADC with solid growth pattern. The significant overestimation seen by the conventional evaluators might be due to the fact that tumor cells within a solid growth pattern are considered less differentiated and generally larger creating the impression of an overall larger tumor region. It seems visually more difficult to assess TCC when cells of different sizes (tumor, stromal and immune cells) need to be considered separately.

Further, we perceived that conventional TCC estimation was influenced by the genuine TCC of a sample. The highest ratio of misclassification (±10%) was seen for samples with an actual TCC around 50% for both stainings (H&E: 76%, TTF-1: 55%) highlighting an additional caveat for tumor samples in this range. For H&E stainings, overestimation was eminent in the majority of cases, as reported before (7-9,22). This can be critical for samples with a low TCC leading to false-negative or incomplete sequencing reports and therefore harbors a significant potential for diagnostic errors (23). Smits et al. reported in samples with a TCC below 20% an overestimation in 38% of cases (8), which concurs with our observation of an overestimation in 47% of samples with a TCC below 30%. To reduce this rate, we recommend the use of TTF-1 IHC (that is often already performed as part of the diagnostic routine workup) and/or digital evaluation for low TCC samples. Although not analyzed by us, it is reasonable to assume that the use of other commonly used IHC markers (CK7, Napsin) can also support TCC measurement, especially for TTF-1 negative tumors. Future studies might help clarifying this issue.

Finally, we assessed the intraobserver variability considering 180° rotated images. Consistency of the software was expectedly very high, but not perfect. Apparently, the different arrangement of the input pixels resulted in minor changes during the cell recognition steps which might lead to the minor differences (1% on average). However, digital approaches still exceeded the consistency of the conventional approach (9% on average), which further demonstrates the potential of improvement of the TCC estimation.

The image size of 1.5–2 mm2 used for TCC evaluation in this study, was selected in order to simulate the tissue size of biopsy specimens, which make up the great majority of NSCLC samples used for molecular diagnostics. Further, this image size enabled the evaluation of the complete image at a glance, ensuring that evaluations were not biased by the way the images were inspected (scrolling, focus on specific areas). However, an interesting aspect for a subsequent study would be to investigate the concordance of TCC estimates in whole slide images.

In summary, our results show several aspects improving or impairing reliable TCC estimations. Considering conventional vs. digital estimations, H&E and TTF-1 staining, the histological growth pattern, the actual TCC and the consistency of estimations we see a high potential for semi-automatic digital TCC estimation, particularly prior to costly and time-consuming molecular diagnostic workflows. With the increasing availability of affordable whole-slide imaging systems and a variety of commercial as well as open source software solutions a broader introduction into clinical practice would be possible within the near future. Further we provide a free web application comprising all images of this study and corresponding ØdPat TCC as reference for training ( and self-testing (
